WIRELESS PRESENTATION TIMER ST-300W

Take control of your presentations with the ST-300W Wireless Presentation Timer System. Designed to streamline and enhance the flow of your events, the ST-300W offers a comprehensive solution for managing speech times with precision and ease.

The ST-300W is an essential tool for any event where time management is critical. From conferences and seminars to meetings and training sessions, this system ensures that every speaker stays on track, enhancing the overall experience for both presenters and attendees. Its user-friendly design, flexible connectivity options, and effective communication features make it a standout choice for professionals who demand reliability and efficiency.

7″ Touch Controller (ST-300W-CT)
High-resolution projected capacitive touch screen
Quick setup with 5, 10, 15, 30, 45, and 60-minute presets
Pause function for flexible time management
Durable hard case protects all components during transport and storage

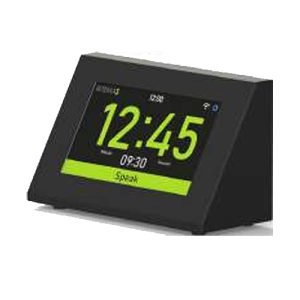

5″ Speaker Display (ST-300W-RD)
Timer Player Box with HDMI output to connect to any monitor
Wired and wireless operation for seamless integration
Visual Warnings: Red, yellow, and green indicators for clear time status
Discreet blink messages to signal speakers

ST-300W-CT CONTROLLER PANEL AND TRANSMITTER

ST-300W-RD PODIUM DISPLAY AND RECEIVER

ST-300W-PB-TIMER PLAYER BOX

Catalog

Brochure

ST-300W Wireless Presentation Timer

Versatile Display Options

7″ Touch Controller (ST-300W-CT): The central hub of the system, this intuitive touch controller features a high-resolution projected capacitive touch screen, offering very high accuracy and low response time. Easily set and adjust speech times with just a few taps. The controller includes convenient presets for 5, 10, 15, 30, 45, and 60 minutes, allowing for quick setup. Additionally, the controller can pause the speech time, providing flexibility during your event.

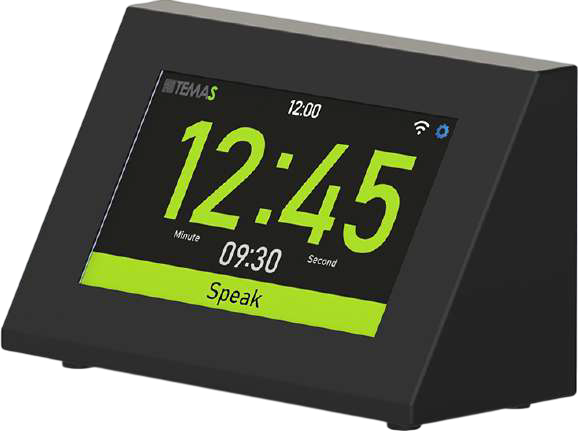

5″ Speaker Display (ST-300W-RD): This compact display keeps speakers informed with real-time updates. It features the same high-resolution projected capacitive touch screen technology as the controller, ensuring a responsive interface. The display shows the total given speech time, remaining time, and a clock, helping speakers manage their time effectively. Clear and bright visuals make it easy to see the information.
Timer Player Box (ST-300W-PB): Transform any monitor into a timer display with this player box. It features an HDMI output, allowing you to connect it to any monitor with an HDMI input. The player box mirrors the ST-300W-RD Speaker Display in real-time, ensuring everyone is aware of the schedule.

Flexible Connectivity

Wired and Wireless Operation: Whether you prefer the reliability of a wired connection or the convenience of wireless, the ST-300W accommodates both. This flexibility ensures seamless integration into any event setup.

Effective Time Management

Customizable Speech Time: Easily set the duration of each speech or presentation segment using the touch controller. Adjust times as needed to keep your event running smoothly. With preset options for common durations, setup is quick and straightforward.
Pause Function: The controller can pause the speech time, providing flexibility to handle unexpected interruptions without losing track of the overall schedule.
Blink Messages: Communicate discreetly with speakers by sending blink messages to their display. These subtle alerts signal when it’s time to wrap up, helping to maintain the flow without interrupting the speaker.

Visual Warnings

Red, Yellow, and Green Indicators: The ST-300W employs a simple yet effective color-coded system to warn speakers of their remaining time. Green indicates ample time, yellow signals that time is running short, and red warns that the time is up. These clear visual cues ensure that everyone stays on schedule.

Safe and Convenient Storage

Hard Case: The ST-300W comes with a durable hard case, ensuring that all components are protected during transport and storage. This makes it easy to carry the system to different venues while keeping it safe from damage.

Controller Screen

Wireless-Presentation-Speaker-Timer-Controler

Speaker Screen

Wireless-Presentation-Speaker-Timer-Speaker

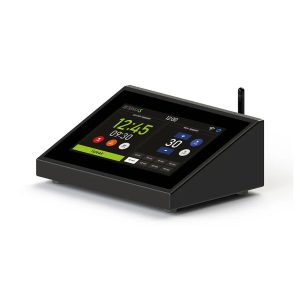

ST-300W-CT Controller Panel and Transmitter

The ST-300W-CT is the central control hub for the ST-300W Wireless Presentation Timer System. Designed with a user-friendly interface and advanced functionality, this 7″ touch controller allows you to effortlessly manage speech times and ensure your events run smoothly.

Intuitive Touch Interface

Responsive Touchscreen: The 7″ display features projected capacitive touch technology, offering a highly responsive and intuitive interface. This ensures very high accuracy and a low response time, making it easy to set and adjust speech times with just a few taps.

Pause Functionality

Flexible Time Management: The controller can pause the speech time, providing flexibility to handle unexpected interruptions without losing track of the overall schedule.

Discreet Speaker Alerts

Blink Messages: Send discreet blink messages to the speaker’s display, signaling when it’s time to wrap up without interrupting the flow of the presentation.

Customizable Speech Time

Adjustable Timer: Easily set the duration of each speech or presentation segment to meet the specific needs of your event.
Presets: Convenient presets for common durations (5, 10, 15, 30, 45, and 60 minutes) allow for quick setup and adjustments.

Visual Warnings

Color-Coded Indicators: Utilize the red, yellow, and green visual indicators to communicate time status to speakers, helping them stay on track with clear visual cues.

Specifications

Screen
Screen Size	7”
Active Display Area	164.90mm(L)×100.00mm(W) 6.5" x 3.94"
Resolution	800×480 pixel
Touch Type	Capacitive
Brightness	300 cd/m2
Color	65K 65536 colors
Backlight	LED
Power Supply	DC 5V 2A

Connection
Wireless Connection	802.11 LR - 2.4 ghz
Wireless Connection Range	100 Mt / 328 ft in Clear Field
Wired Connection	RS485 Communication
Wired Connection Range	500 Mt./ 1600 ft (Cat6 - Type B)
Wired Connection Jack	RJ-45
Local or Remote Mode Selection	Adjustable via 5" Podium Display

Mechanical Feature
Dimension LWH	149 x 240 x 70 mm	5,9" x 99.5" x 2.75"
Weight	1.95 kg	4.3 lbs

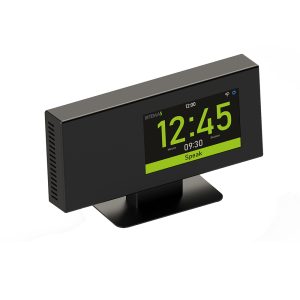

ST-300W-RD Podium Display and Receiver

The ST-300W-RD is a crucial component of the ST-300W Wireless Presentation Timer System, designed to keep speakers informed and on track. This 5″ speaker display offers a high-resolution touch screen with advanced features to ensure smooth and professional presentations.

High-Resolution Touchscreen

Projected Capacitive Touch Technology: The 5″ display features projected capacitive touch technology, providing very high accuracy and a low response time. This ensures an intuitive and responsive interface for real-time updates.
High Resolution: The high-resolution screen delivers clear and bright visuals, making it easy for speakers to read the displayed information.

Visual Warnings

Color-Coded Indicators: Utilizes a simple yet effective color-coded system (red, yellow, and green) to indicate time status, helping speakers stay on schedule with clear visual cues.

Comprehensive Time Display

Total Given Speech Time: Clearly shows the total allocated speech time.
Remaining Time: Displays the remaining time, helping speakers manage their pace effectively.
Clock: Includes a clock to provide real-time context, ensuring speakers are always aware of the current time.

Discreet Alerts

Blink Messages: Receive subtle blink messages from the touch controller, signaling when it’s time to wrap up without distracting the audience.

Specifications

Screen
Screen Size	5”
Active Display Area	120.7mm(L)×75.8mm(W) - 4.75"x 3"
Resolution	800×480 pixel
Touch Type	Capacitive
Brightness	300 cd/m2
Color	65K 65536 colors
Backlight	LED
Power Supply	DC 5V 2A

Connection
Wireless Connection	802.11 LR - 2.4 ghz
Wireless Connection Range	100 Mt / 328 ft in Clear Field
Wired Connection	RS485 Communication
Wired Connection Range	500 Mt./ 1600 ft (Cat6 - Type B)
Wired Connection Jack	RJ-45
Local or Remote Mode Selection	Adjustable via 5" Podium Display

Mechanical Feature
Dimension LWH	128 X 245 X 75 mm	5" x 9.65" x 2.95"
Weight	1.8 kg	4 lbs

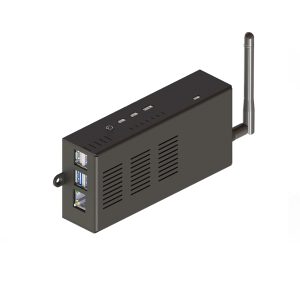

ST-300W-PB Timer Player Box

The ST-300W-PB Timer Player Box is an essential component of the ST-300W Wireless Presentation Timer System, designed to extend the functionality of your event setup. With its HDMI output, this player box allows you to convert any monitor with an HDMI input into a fully functional timer screen, mirroring the display of the ST-300W-RD Speaker Display.

Easy Integration

Plug-and-Play: The ST-300W-PB is designed for easy setup and integration. Simply connect it to your monitor using an HDMI cable, and it will automatically mirror the speaker display, transforming the monitor into a functional timer screen.

Mirror Display

Real-Time Mirroring: The player box mirrors the ST-300W-RD Speaker Display in real-time, ensuring that all timer information, including total given speech time, remaining time, and clock, is accurately displayed on the connected monitor.

HDMI Output

Versatile Connectivity: The ST-300W-PB features an HDMI output, enabling seamless connection to any monitor with an HDMI input. This allows you to easily integrate the timer display into your existing setup.
High-Quality Display: Ensure that the timer information is clearly visible on any connected monitor, providing a professional and reliable display solution.

Specifications

Connection
Wireless Connection	802.11 LR - 2.4 ghz
Wireless Connection Range	100 Mt / 328 ft in Clear Field
Wired Connection	RS485 Communication
Wired Connection Range	500 Mt./ 1600 ft (Cat6 - Type B)
Wired Connection Jack	RJ-45
Local or Remote Mode Selection	Adjustable via 5" Podium Display

Player
Processor	Broadcom BCM2711, Quad-Core Cortex-A72
Memory	2GB LPDDR4
Video Output	Micro HDMI
Input Power	DC 5V 3A

Mechanical Feature
Dimension LWH	70 x 149 x 35 mm	2.75" x 5.9" x 1.4"
Weight	350 gr	1 lb
